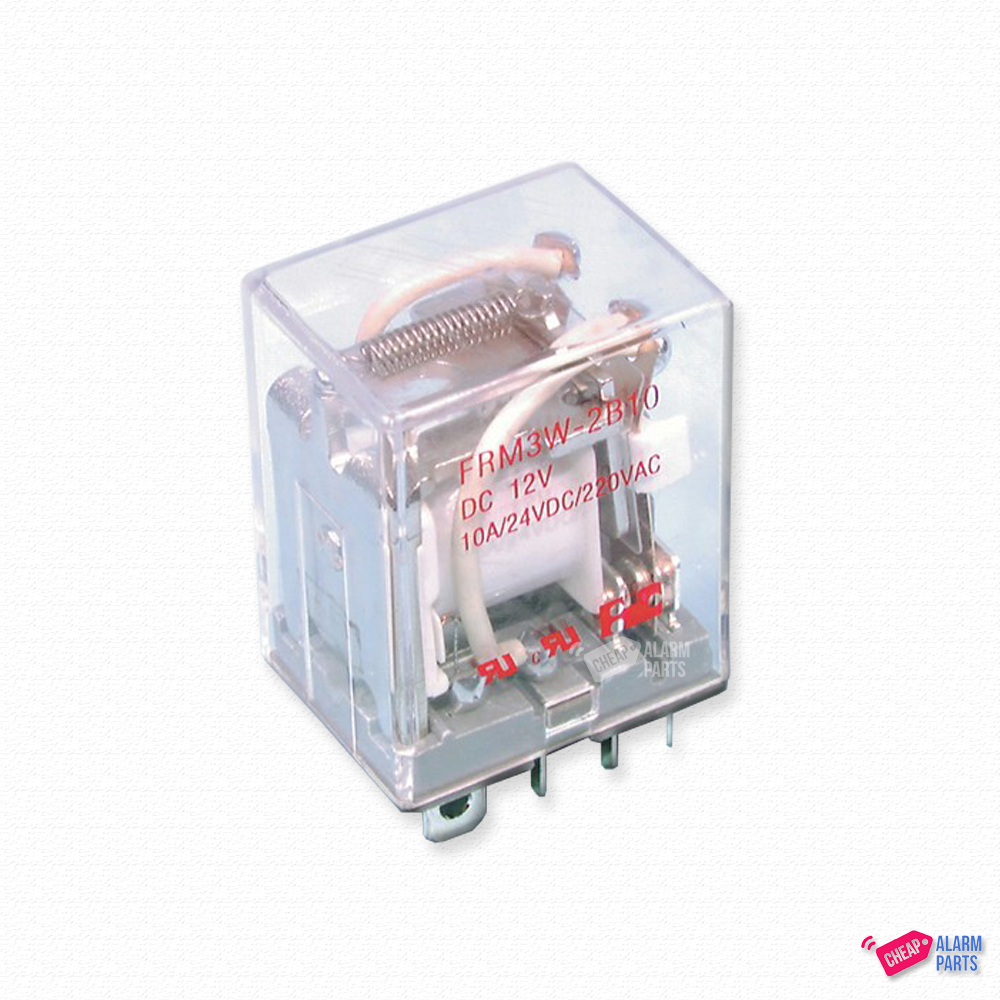

12V DPDT Power Relay - 10A 240VAC/24VDC Contacts

Cradle Relay - DPDT

$14.85
In Stock


12VDC relay suitable for DIN cradle mounting. High current rating suitable for large loads.

Calculate Shipping



Flat Rate Shipping - $12.95
Flat Rate Shipping

12V DPDT Power Relay - 10A 240VAC/24VDC Contacts





The Blurb:

Versatile 4PDT relay suitable for switching loads up to 5A. Designed to suit the SY-4004 DIN rail mounting cradle. Can also be installed with direct connection using mini spade lugs.

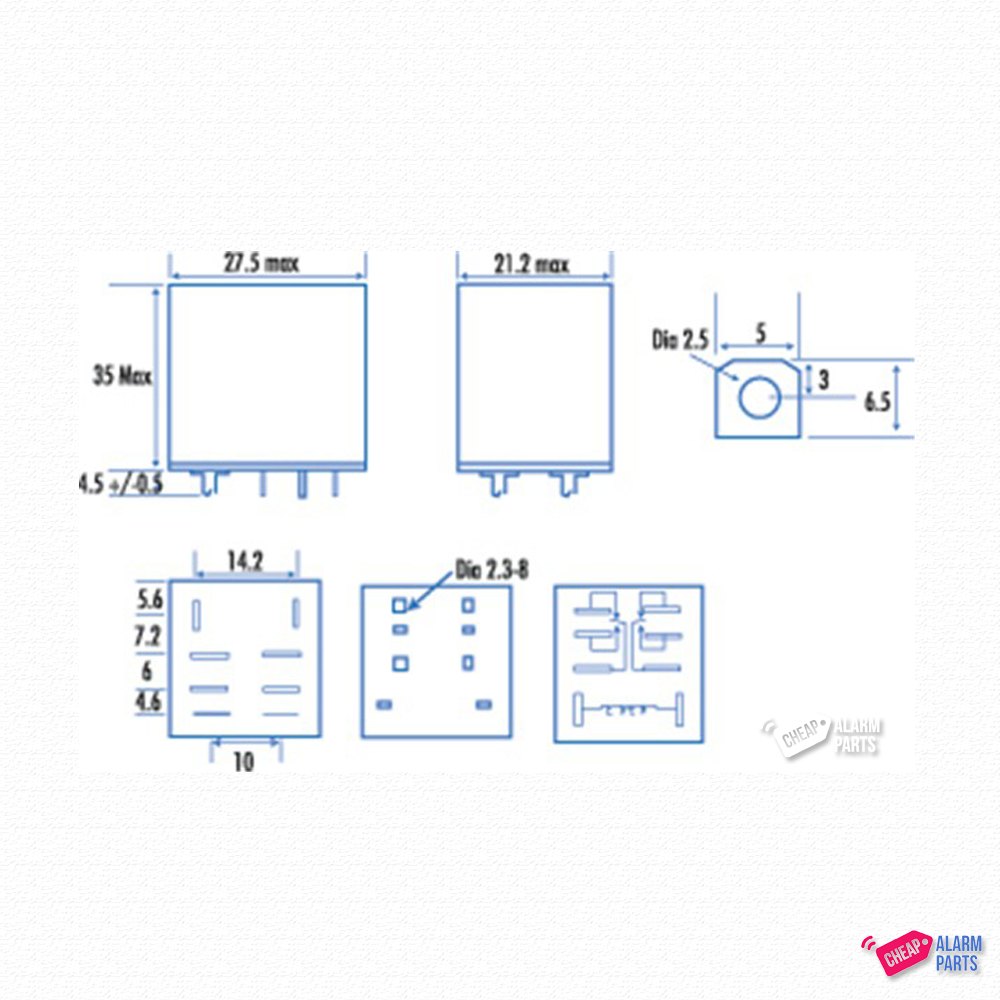

Specifications:

Length : 20.0mm
Width : 27.0mm
Height 35.0mm
DC Voltage : 12.0V
DC Current Draw : 75.0mA
Item connection : Spade Terminals
Mounting Method : Cradle/Socket Mount
Device Type : Cradle Mounting Relay
Input : DC
Contact format : DPDT
Nominal Voltage : 12.0V
Coil Resistance : 160.0Ω
Coil Current : 75.0mA
AC Switching Voltage : 240.0V
AC Switching Current (Opening) : 10.0A
DC Switching Voltage : 24.0V
DC Switching Current (Opening) : 10.0A




All images and text are copyright Cheap Alarm Parts.
Please don't copy them and put them on your website. Seriously. It makes us cranky.

(SY4065)

SKU SY4065
Shipping Weight 0.2500kg
Shipping Width 0.150m
Shipping Height 0.070m
Shipping Length 0.100m
Shipping Cubic 0.001050000m3
