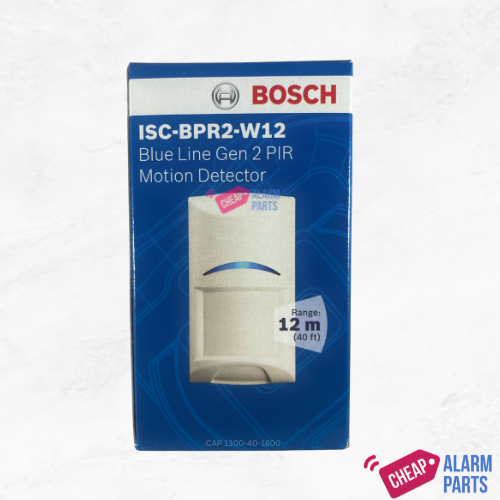

Blue Line Gen2 PIR (Passive Infra-Red detector).



Quick Overview:

• 12 m x 12 m (40 ft x 40 ft) wall to wall broad coverage
• Available from Cheap Alarm Parts.
• Flexible mounting height from 2.3 m to 2.7 m (7.5 ft to 9 ft)
• 12v Powered from alarm panel.





The Blurb:

The Blue Line Gen2 Pir is a standard movement sensor which should be used for non harsh enviroments. It is the choice detector for the average home or small office based business. This sensor can be screwed flat against a wall, or corner mounted (both without the need for a bracket). Available from Cheap Alarm Parts. We do recommend the Bosch swivel brackets if your ceiling height is more then 3m. This is a basic PIR (passive infra-red) type sensor for non harsh environments. Will work happily in the average family home or quiet office blocks.



All images and text are copyright Cheap Alarm Parts.



Recommended for:

• Residential environments
• Office blocks



Not Recommended for:

• Pets
• Garages
• Air conditioned premises (while armed)
• Warehouse environments
• Installations near train-lines, main roads, harbours



Compatibility:

• All Bosch wired alarm panels
• All 12v 'normally closed' alarm panels



Features:

• 12 m x 12 m (40 ft x 40 ft) wall to wall broad coverage
• Installation friendly two piece design.
• Flexible mounting height from 2.3 m to 2.7 m (7.5 ft to 9 ft)
• No range or height adjustments required
• Temperature compensation.
• 7 Detection layers including optional look down zone.
• Led Enable / Disable switch
• Screw Terminals for easy connection
• Cover Tamper switch with separate terminals
• Normally Closed contacts.
• In-built bubble level
• Self locking enclosure
• 12v operation (from alarm panel)
• No brackets required for corner or wall mounting.



Internal view of PCB:

(printed circuit board).
