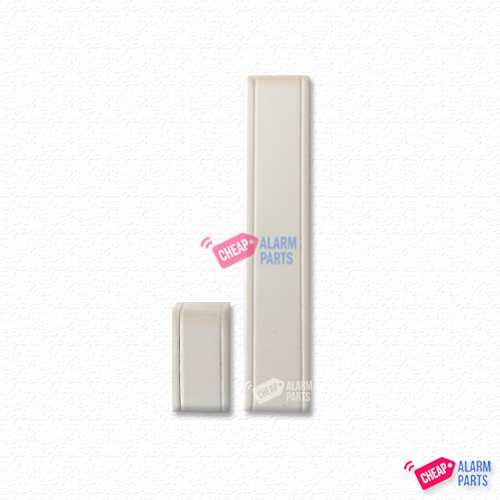

Bosch Radion Wireless Surface Mount Door Window Contact Reed RFDW-SM



Quick Overview:

• An internal magnetic reed switch contact.
• Available from Cheap Alarm Parts.
• Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions.

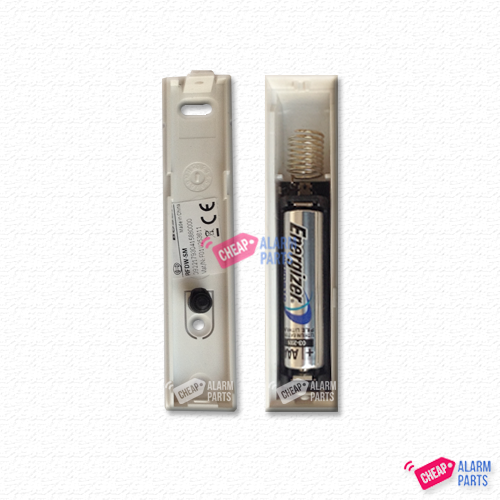

• Operational up to 5 years using a single user replaceable AAA lithium battery.



The Blurb:

RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.



Specifications:

Dimensions Trandmitter:	19.5 mm x 82.55 mm x 12.8 mm (0.76 in x 3.25 in x 0.50 in)
Dimensions Magnet:	18.5 mm x 24.5 mm x 12.5 mm (0.72 in x 0.97 in x 0.49 in)
Voltage:	1.5VDC
Battery Type:	AAA Lithium
Battery Life:	Up to 5 years
Temperature:	Functional range: -10°C to +49° (+14°F to + 120°F) / UL only: 0°C to +49°C (+32°F to + 120°F) / EN 50130-5 Class II only: -10°C to 40°C (+40°F to +104°F)
Environment:	Complies with EN50130-5 Class II
Relative Humidity:	Up to 93% non-condensing
Cover and Wall Tamper Switch:	Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the ceiling.
Frequency:	433.42MHz.
Use:	Intended for indoor use.



Compatibity:

• RF3212E Receiver
• Radion SD12 bus compatible receiver
• Solution Ultima 880
• Solution 16i
• Solution 16Plus
• Solution 64
• Solution 144
• Solution 6000
• Solution 3000



Downloads:

Surface Mount Contact Data Sheet (232kb)
Surface Mount Contact Installation Guide (283kb)
