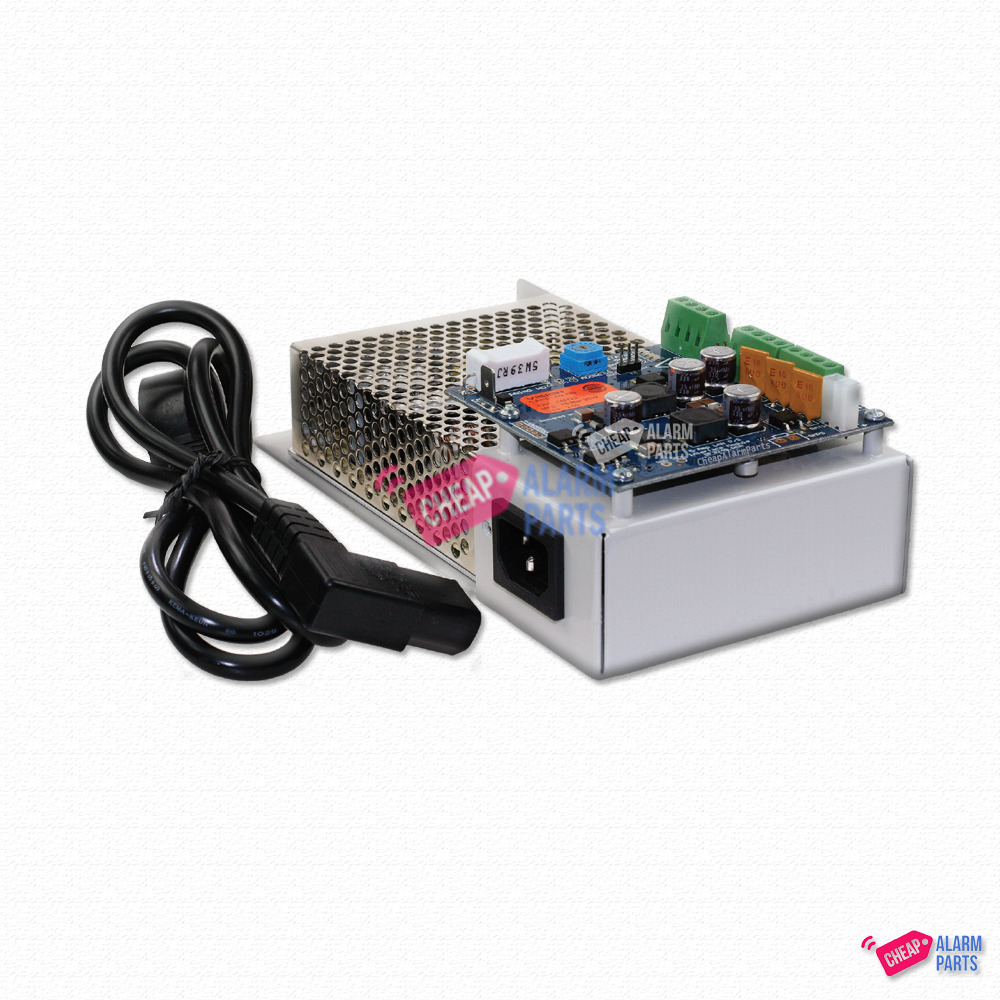

CM723B 5 Amp 13.8VDC Lan Power Supply



Quick Overview:

• 5 Amp continuously rated
• 13.8V DC
• Charges 2x 7.2AH Batteries or 1x 18Ah Battery
• LAN supervised on Solution 144 and 6000 panels
• Available from Cheap Alarm Parts



The Blurb:

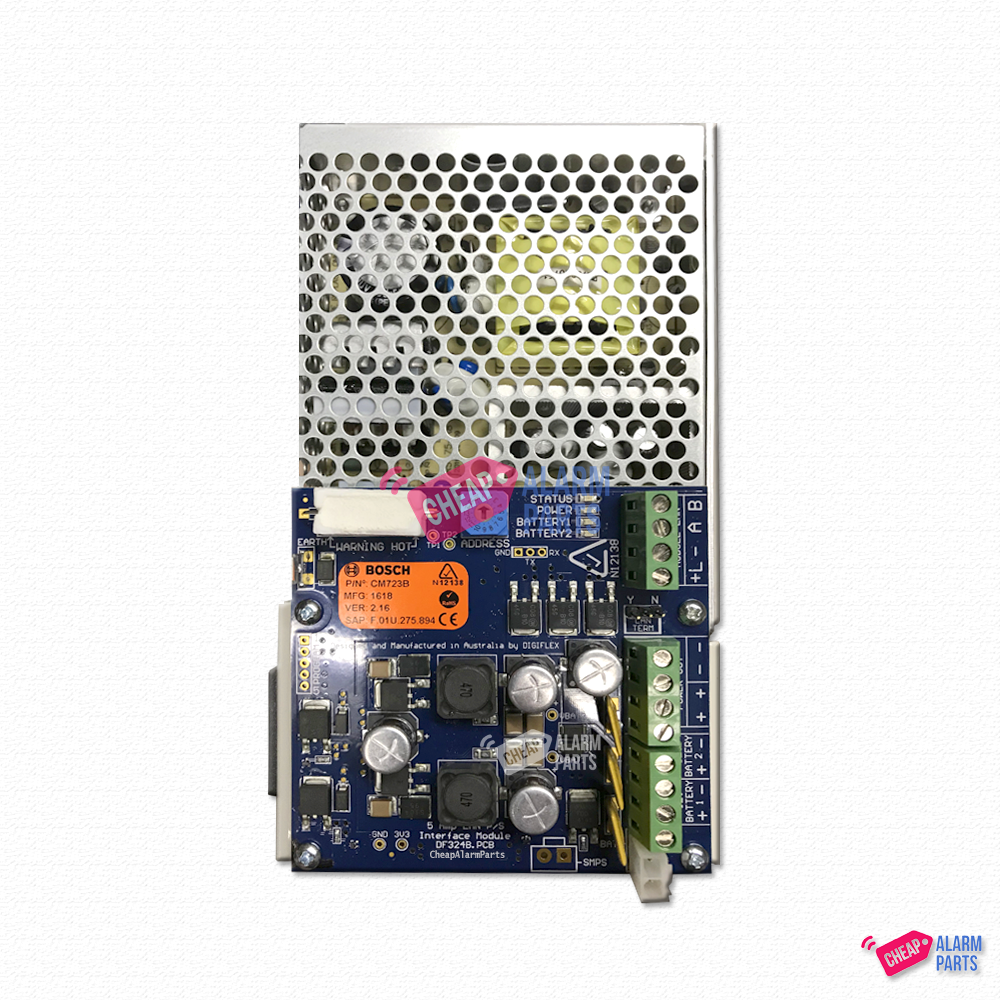

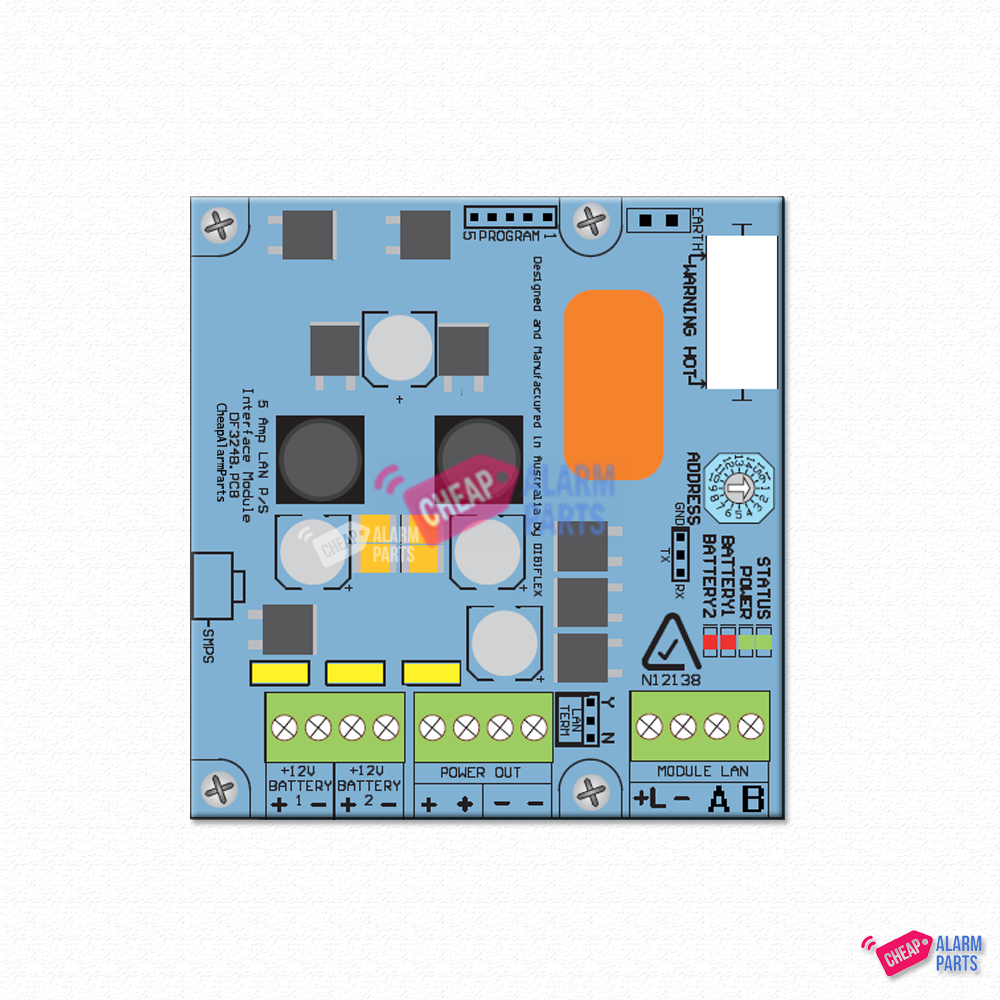

The CM723B is a high efficiency 5Amp 13.VDC continuously rated switch mode power supply with two independent battery chargers. The battery charger can be configured to charge one or two 7.2Ah batteries simultaneously or a one 18Ah battery for longer stand-by times. Two power output terminals are provided to simplify wiring to ancillary equipment and these are protected with a self-resetting fuse. An optional CM435B Power Terminal Expander card can be used to increase the number of terminals required (available separately).

The CM723B is a LAN device and can be installed in its enclosure away from the main panel while remaining fully supervised by a Solution 144 or Solution 6000 panel. The main panel continuously monitors all functions of the power supply including AC power fail, low battery and output voltage as well as temperature and current overload conditions. These errors will be displayed on the keypad as well as going back to base (where connected).



Compatibility:

• Stand Alone
• Solution 144
• Solution 6000



Whats in the box?:

• 1x 5Amp Power Supply
• 1x IEC mains lead
• 1x Reference guide
• 2x Red battery leads
• 2x Black battery leads
• 1x Earth Lug



Specifications:

Voltage Output:	13.8V DC @ 5 Amps (Primary supply source only)
Temperature:	0o to 55oC Operating
Dimensions:	50(W) x 23(D) x 58(H)mm
Warranty:	3 years
