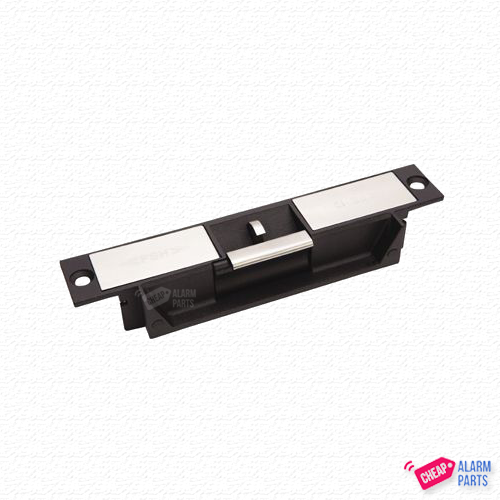

FSH Monitored Pre Load Strike



Quick Overview:

• Tested to 1.5Mill full 35kg pre-load cycles
• Multi Voltage 10-30VDC
• Sleep-Mode: 15mA@12VDC in locked or unlocked mode
• 35kg of Preload
• MUST BE CONNECTED AS 3-WIRE WHEN IN FAIL SECURE





The Blurb:

The patented FES90M-P motorised High Security Electric EcoStrike with up to 35kg Pre-Load capability is a revolutionary electric locking solution. With a high Pre-Load /Side-Load tolerance and minimal energy consumption in Sleep-Mode it is a truly Green Locking Solution.

The strike accepts voltages from 10 to 30VDC, is pre-drilled for extension lips and has a unique and simple fail secure (Power To Open)/ fail safe (Power To Lock) switch-over function.

The door strike provides 3 forms of monitoring:

                           1. LSS (Lock Status Sensor)

                           2. DSS (Door Latch Sensor)

                           3. DPS (Door Position Sensor)

To utilise the Door Position Sensor monitoring function (DPS), FSH is providing special Mortice Lock Face Plates equipped with magnets, as separate items (see Accessories). These Face Plates work in conjunction with the FES90M-P built in Reed Switch.

The electric strike consumes current less than 300mA @ 12VDC at full 35kg pre-load only during locking and unlocking action. In the locked or unlocked state (Sleep-Mode), the electric strike consumes current less than 15mA@12VDC.

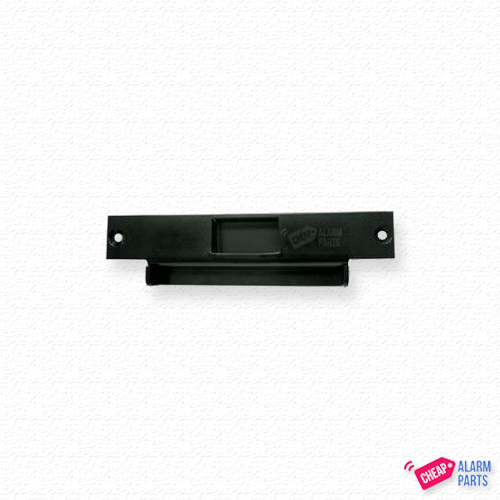

FES90MP comes with a 10mm strike lip as standard, to prevent possible personal injury and damage to clothing as with 15mm lips.
