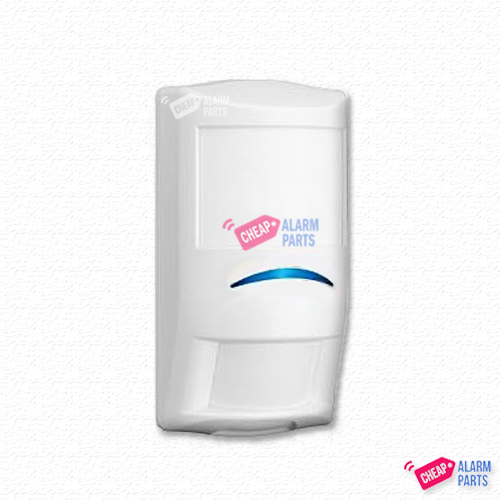

Professional Series TriTech with Antimask ISC-PDL1-WA18G 18mx25m



Quick Overview:

• 18 m x 25 m (60 ft x 80 ft) coverage, field selectable to 8 m x 10 m (25 ft x 33 ft).
• Sensor data fusion technology.
• Available from Cheap Alarm Parts.
• Tri-focus optics technology.
• Range adaptive radar.
• Cloak and Camouflage Detection Technology (C2DT).



The Blurb:

This device is exceptionally suited for commercial indoor applications. MANTIS anti-mask technology makes obscuring the detector view nearly impossible for intruders. Sensor data fusion technology ensures that the detector sends alarm conditions based on precise information. Tri‑focus optics eliminate coverage gaps and respond efficiently to intruders.

The powerful combination of unique features in the Professional Series delivers superior catch performance and virtually eliminates false alarms. The self-locking two-piece enclosure, built-in bubble level, flexible mounting height, and three optional mounting brackets simplify installation and reduce service time.



All images and text are copyright Cheap Alarm Parts.



Specifications:

• Sensor Data Fusion Technology
• Tri-focus Optics Technology
• Range Adaptive Radar
• MANTIS Anti-mask Technology
• Active White Light Suppression
• Available Coverage
• Dynamic Temperature Compensation
• Cover and Wall Tamper Switch
• Self-adjusting LEDs
• Remote Walk Test LED
• Alarm Memory
• Solid State Relays
• Draft, Insect, and Small Animal Immunity
• Remote Self Test
• Input Power Supervision
• Trouble Memory
• Cloak and Camouflage Detection Technology
• DIP Switch Programming



Specifications:

Voltage:	9 VDC to 15 VDC
Current (Maximum):	< 26 mA with alarm, trouble, and LEDs active.
Current (Standby):	18 mA at 12 VDC
Tamper:	Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit.
Trouble:	Solid state relay normally-closed (NC) contacts.
Alarm Relay:	Solid state relay, normally-closed (NC) contacts, power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω.
Dimensions:	127 mm x 69 mm x 58 mm (5 in. x 2.75 in. x 2.25 in.)
Material:	High-impact ABS plastic
Zones:	86
Relative Humidity:	0 to 95%, non-condensing
Temperature:	-30°C to +55°C (-22°F to +130°F) For UL Certificated installations, 0°C to +49°C (+32°F to +120°F)
