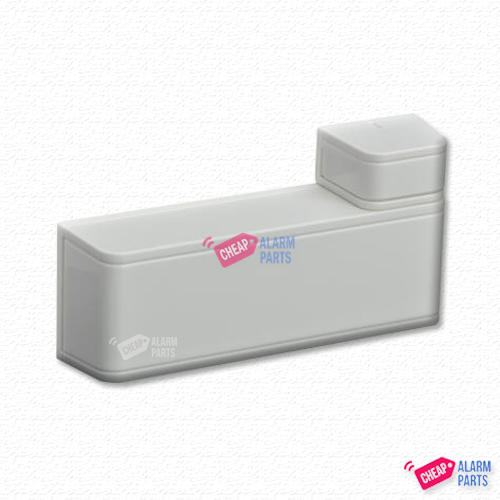

Radion Wireless Universal Transmitter Reed RFUN



Quick Overview:

• Single alarm loop input can be configured for use with virtually any Normally Open or Normally Closed external detector.
• Integrated magnetic reed switch contact.
• Available from Cheap Alarm Parts.
• Supervised for low-battery, cover-tamper, and removal from mounting surface tamper conditions.
• Operational for up to 5 years using a single CR123A Lithium battery.



The Blurb:

RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.

RADION universal is a wireless transmitter used for monitoring doors, windows, and dry contact devices.



Specifications:

Dimensions Transmitter:	33.02 x 82.55 x 19.5 mm (1.30 in x 3.25 in x 0.76)
Dimensions Magnetic:	18.5 mm x 24.5 mm x 12.5 mm (0.72 in x 0.97 in x 0.49 in)
Voltage:	One CR123A Lithium battery, 3 VDC
Battery life:	Up to 5 years
Temperature:	Functional range: -10ﾟC to +49ﾟ (+14ﾟF to +120ﾟF) / UL only: 0ﾟC to +49ﾟC (+32ﾟF to +120ﾟF) / EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF
Environment:	Complies with EN50130-5 Class II
Relative Humidity:	Up to 93% non-condensing
Cover and Wall Tamper Switch:	Transmits a tamper switch signal when the detector is removed from its base, or the unit is pulled away from the wall.
Maximum distance between sensor and magnet:	<12.7 mm (1/2 in) Place the magnet on either side. The base has marks to indicate the positioning of the magnet.
Wire gauge:	0.65 mm (22 AWG) to 1.5 mm (16 AWG)
Frequency:	433.42 MHz
Use:	Intended for indoor use.



Compatibity:

• RF3212E Receiver
• Radion SD12 bus compatible receiver
• Solution Ultima 880
• Solution 16i
• Solution 16Plus
• Solution 64
• Solution 144
• Solution 6000
• Solution 3000



Downloads:

Universal Transmitter Contact Data Sheet (239kb)
Universal Transmitter Installation Guide (387kb)
