Bosch Solution 3000 IP Cloud Kit + 3 PIRs + 5" Touch Screen Keypad



Solution 3000-IP Cloud Kit + 3x PIRs + 5" Touch Screen Keypad Kit including:

The 'Solution-3000' range proves versatile for any installation, supporting up to 16 fully programmable zones and 4 code pads per system. The range of intrusion panels is suitable for private residencies, small businesses, and even some commercial premises.

Features of this kit:















The Kit

Our kits come with everything you need to get the system running, except for screws and cable. We have an extensive range of cabling, but we do recommend 14/020 Security cabling for everything in the installation. Don't use Cat5 or Cat6 cable - it makes us sad - and causes false alarms.

This is what you get in the kit:

*including a free brown box with "Cheap Alarm Parts" on the side:





















Easy Installation

We give you all the information you need to install a new or upgrade from another alarm panel. Our tech support will help you out for free along the way. Each system comes with a default pin number and installer codes - you can change them to anything you want. You have access to everything in the panel.













Free App Remote Security Control Plus (RSC+)

The Solution 3000 alarm kit comes with the free 'Remote Security Control Plus' app, facilitating fingertip, remote control of your alarm panel. Each user of RSC+ app is able to receive push notifications from one or multiple panels which you can personalise to suit the needs dependant on the property.



All these features are available within the RSC+ app the moment your panel is connected:

• Receive alarm notifications while you are on holiday or simply get an update when the kids return from school and disarm the panel;
• The ability to remotely arm and disarm your alarm panel;
• View the status of the sensors and the ability to isolate them if required;
• Control up to 20 output devices connected to the panel, such as garage doors;
• Once logged in to the panel via the app, you can also access the full panel history and view recent alarm and sensor activity.



















What Makes Us Special:

We all like to feel a bit special.
Here is what separates us from other online sellers:

•







•



The Juicy Bits

For people who love to read the juicy bits.

Quick Kit Overview:

• Comes with 3 movement sensors.
• Includes indoor and outdoor sirens.
• Available from Cheap Alarm Parts.
• Includes IP Module.

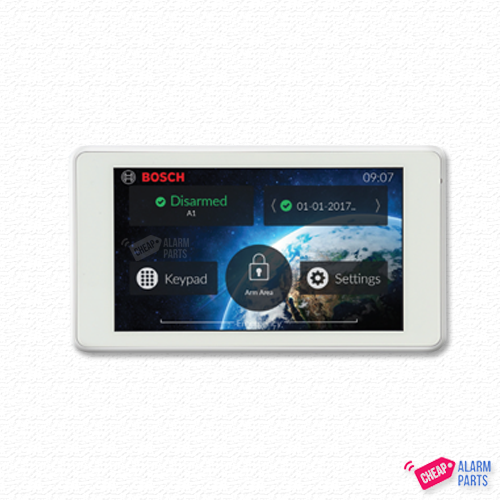

• Includes 5" Touch Screen Keypad.
• Includes power supply and battery.
• Comes with instructions, manuals, and cheat sheets.
• Comes with all codes (you change them).
• Includes resistors, phone leads, tamper switches, and lots more.
• You will need to purchase cable if your premises is not pre-wired.



Technical Overview:

• 16 Fully Programmable Zones
• 41 codes - 1 Installer, 20 User Codes (up to 32 on Solution 3000).
• 16 Wireless Devices (on Solution 3000).
• Partitionable into 2 Separate Areas.
• STAY / AWAY Arming Options.
• Entry and Exit Warning.
• Selectable Reports per User Code.
• Automatic Arming.
• Remote Arming.
• Zone Lockout.
• 256 Event History Memory.
• LCD Icon, LCD Alphanumeric, and Touchscreen Support.
• 4 Programmable Outputs.
• Dynamic Battery Test.
• Day Alarm.
• Walk Test Mode.
• Back to Base Reporting.
• Domestic Reporting.
• Dual Entry Timers.
• AC Fail Supervision.
• Phone Line Supervision.

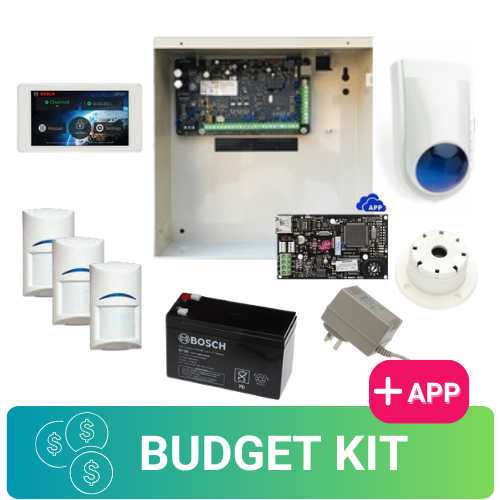

Kit Includes all this:

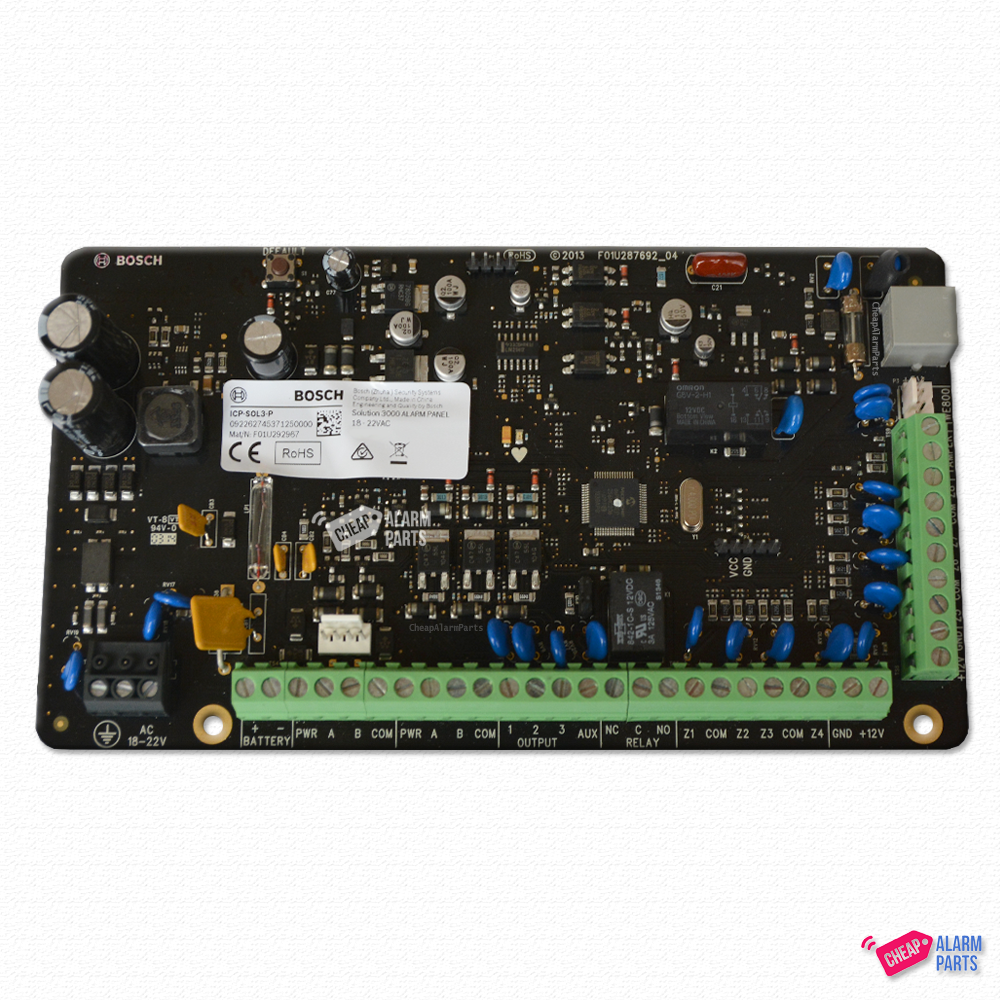

• 1 x Solution 3000 control panel (ICP-SOL3-P)
• 1 x Metal box for control panel
• 1 x Solution 3000 Printed Quick Start Guide
• 1 x Solution 3000 Printed User Guide
• 1x Update and release notes
• 1 x Standard 610 telephone cable with adaptor
• 1 x Battery leads Set
• 1 x Tamper switch and bracket
• 10 x 3k3 resistors
• 10 x 6k8 resistors
• 1 x 5" Touch Screen Keypad.
• 3 x Blue Line Gen2 PIR Sensors.
• B426-M IP Module.
• 1 x Siren Kit:
  • 1x External Screamer
  • 1x Blue flashing strobe light
  • 1x Tamper switch
  • 1x Internal Piezo screamer
  • (Choice of Slimline or Full size)
• 1 x Power Kit:
  • 1x 12v 7Amp /hour Sealed Lead Acid rechargeable battery (BA006)
  • 1x 240v/18v plug pack (Bosch or Rock)
• 1 x Cheat Sheet:
  • Alarms-Online cheat sheet(only available from Alarms-Online)
  • A simplified version of the Bosch manual specifically designed for installers who are not familiar with Bosch alarm systems.
  • Makes installing a breeze.







B426 Module Information:

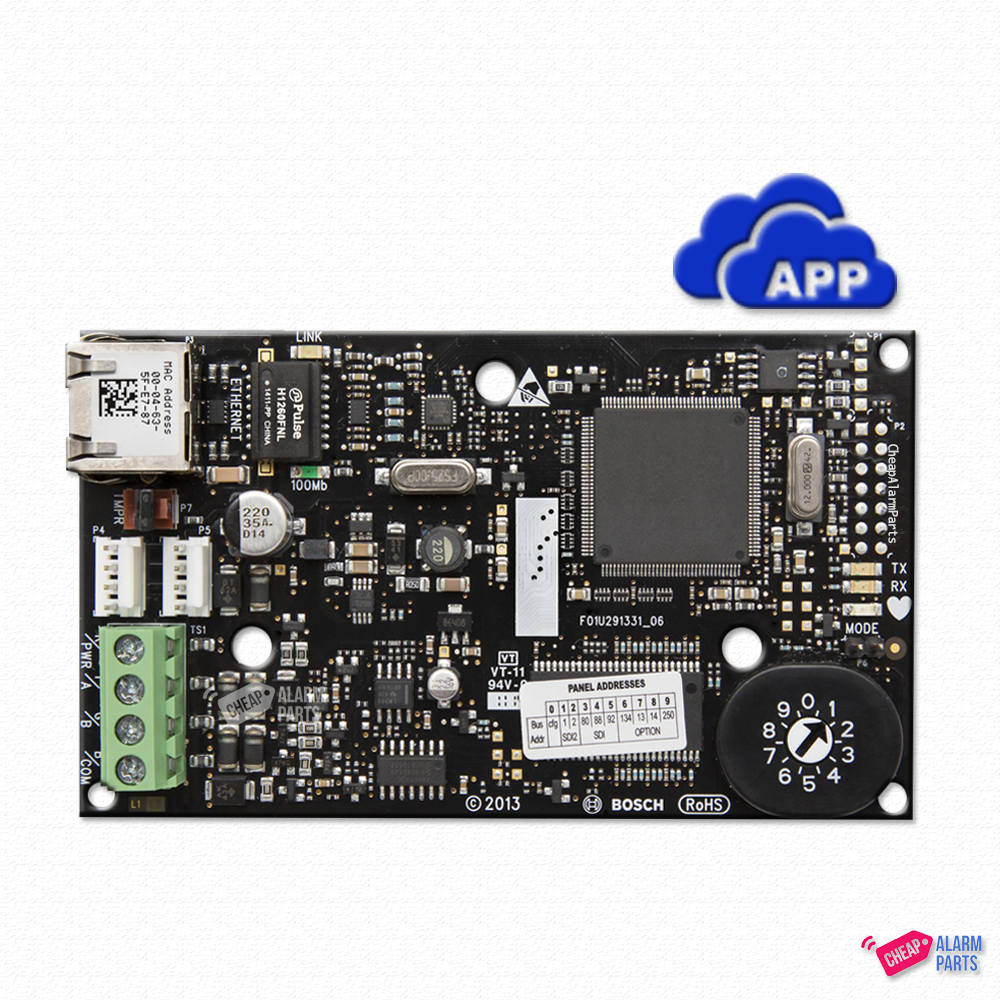

B426 Ethernet Communication Module:

The Solution 3000-IP allows connection to the Internet via the panels B426-M interface to your home or business Internet. You'll need to run an Ethernet cable between the panel and your modem or router. This allows connection to the "Bosch Cloud" and the RSC+ smartphone app which gives you FREE notifications if the alarm goes off direct to any number of mobiles and of course full control over the alarm right from your phone.



The B426 Conettix Ethernet Communication Module is a four-wire bus device that provides two-way communication with compatible control panels over IPv4 or IPv6 Ethernet networks.

Typical applications include:

• Reporting and path supervision to a Conettix Communications Receiver/Gateway.
• Remote administration and control with Remote Programming Software (RPS) or our Remote Security Control application for handheld devices.
• Connection to building automation and integration applications.

The B426 is built for a wide variety of secure commercial and industrial applications. Flexible end-to-end path supervision, AES encryption, and anti-substitution features make B426 desirable for high security and fire monitoring applications. It is capable of a stand-alone path or it can be used in conjunction with other communication technology.
