Bosch Solution 3000 Upgrade Kit with 5" Touch Screen Keypad





Solution 3000 Upgrade Kit with 5" Touch Screen Keypad including:

The 'Solution-3000' range proves versatile for any installation, supporting up to 16 fully programmable zones and four code pads per system. The range of intrusion panels is suitable for private residencies, small businesses, and even some commercial premises.



Features of this kit:















The Kit

Our kits come with everything you need to get the system running, except for screws and cable. We have an extensive range of cabling, but we do recommend 14/020 Security cabling for everything in the installation. Don't use Cat5 or Cat6 cable - it makes us sad - and causes false alarms.

This is what you get in the kit:

*including a free brown box with "Cheap Alarm Parts" on the side:



















Easy Installation

We give you all the information you need to install a new or upgrade from another alarm panel. Our tech support will help you out for free along the way. Each system comes with a default pin number and installer codes - you can change them to anything you want. You have access to everything in the panel.













What Makes Us Special:

We all like to feel a bit special.
Here is what separates us from other online sellers:

•





•



The Juicy Bits

For people who love to read the juicy bits.



Important Note:

• This upgrade kit requires an 18v 1.3Amp plug pack TF008-B. Check if your old alarm has the correct plug pack. Don't use existing 17v or 16v plug packs.



Quick Kit Overview:

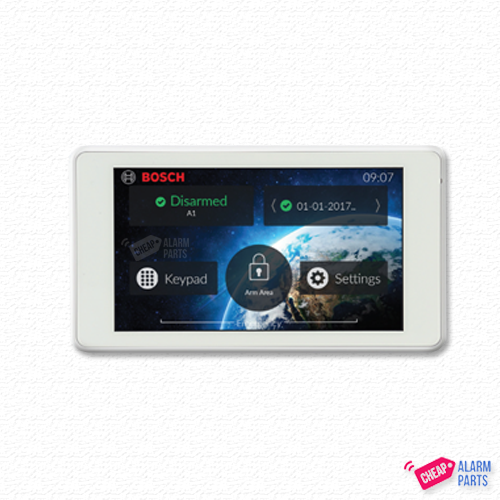

• Includes 5" Touch Screen Keypad.
• Available from Cheap Alarm Parts.
• Comes with instructions, manuals, and cheat sheets.
• Comes with all codes (you change them).
• Includes resistors, phone leads, tamper switches, and lots more.
• You will need to purchase cable if your premises is not pre-wired.



Technical Overview:

• 16 Fully Programmable Zones
• 41 codes - 1 Installer, 20 User Codes (up to 32 on Solution 3000).
• 16 Wireless Devices (on Solution 3000).
• Partitionable into 2 Separate Areas.
• STAY / AWAY Arming Options.
• Entry and Exit Warning.
• Selectable Reports per User Code.
• Automatic Arming.
• Remote Arming.
• Zone Lockout.
• 256 Event History Memory.
• LCD Icon, LCD Alphanumeric, and Touchscreen Support.
• 4 Programmable Outputs.
• Dynamic Battery Test.
• Day Alarm.
• Walk Test Mode.
• Back to Base Reporting.
• Domestic Reporting.
• Dual Entry Timers.
• AC Fail Supervision.
• Phone Line Supervision.

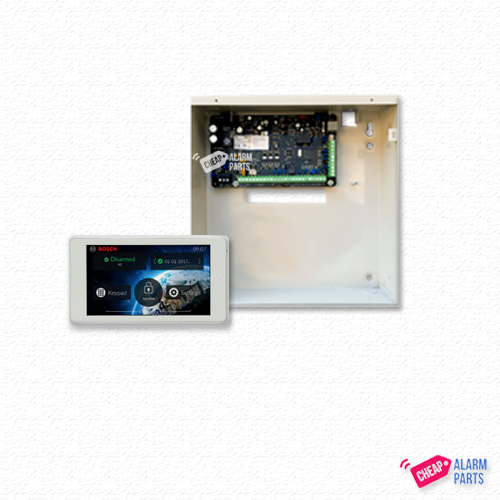

Kit Includes all this:

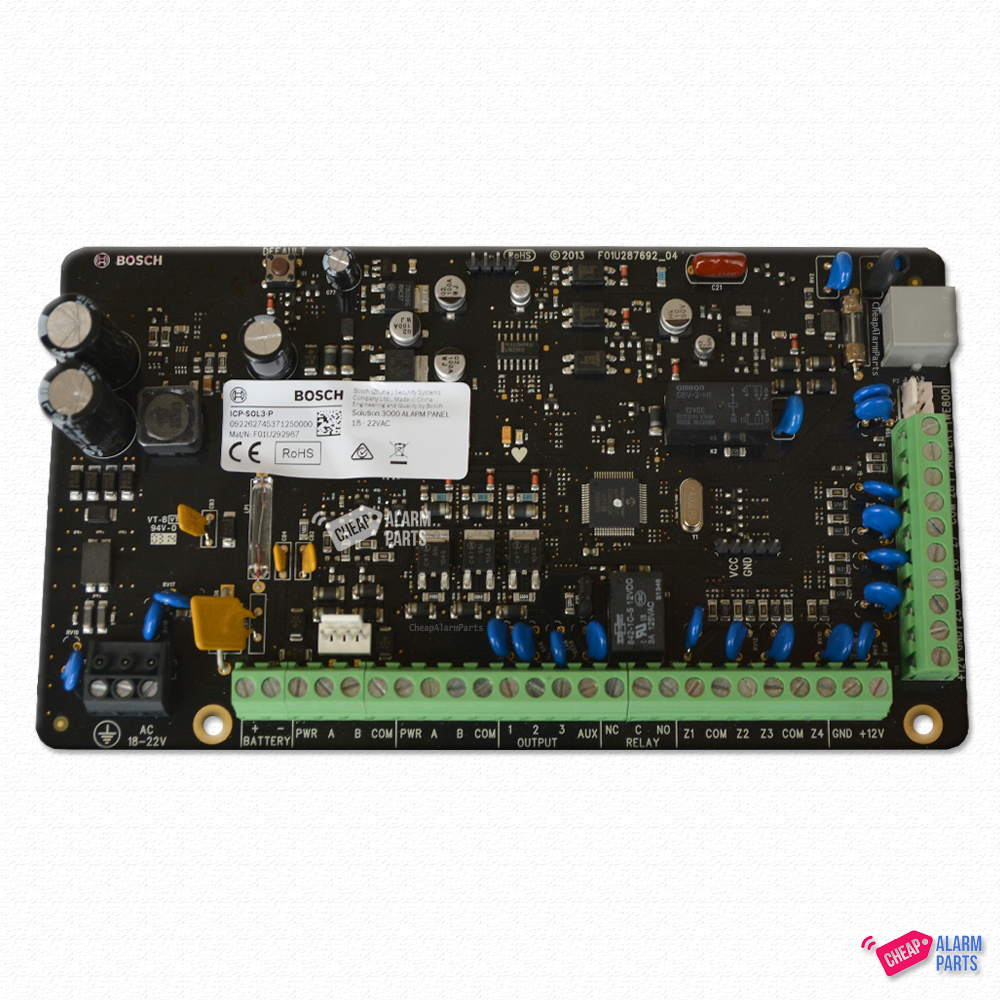

• 1 x Solution 3000 control panel (ICP-SOL3-P)
• 1 x Metal box for control panel
• 1 x Solution 3000 Printed Quick Start Guide
• 1 x Solution 3000 Printed User Guide
• 1x Update and release notes
• 1 x Standard 610 telephone cable with adaptor
• 1 x Battery leads Set
• 1 x Tamper switch and bracket
• 10 x 3k3 resistors
• 10 x 6k8 resistors
• 1 x 5" Touch Screen Keypad.
• 1 x Cheat Sheet:
  • Alarms-Online cheat sheet(only available from Alarms-Online)
  • A simplified version of the Bosch manual specifically designed for installers who are not familiar with Bosch alarm systems.
  • Makes installing a breeze.
