Bosch 3000 Radion Wireless Upgrade Kit - 4 x Premium Stainless Remotes



Quick Overview:

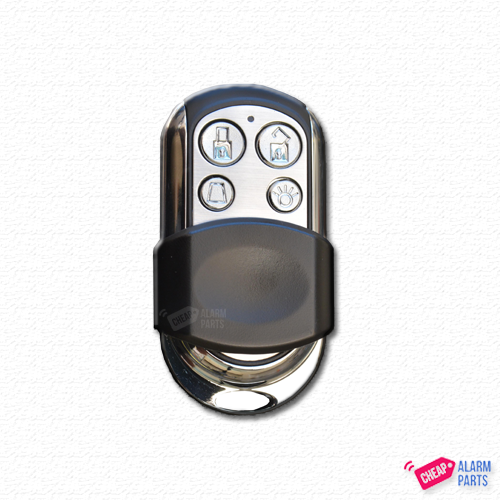

• Remotes:
  • Water and dust resistant
  • Arm, disarm and panic functions
  • Assigned by user for accurate reporting of open close signals
  • LED indicator
  • Programmable aux buttons (depending on panel type)
  • Sliding protective stops buttons from being accidently pressed
  • Compact and sturdy design

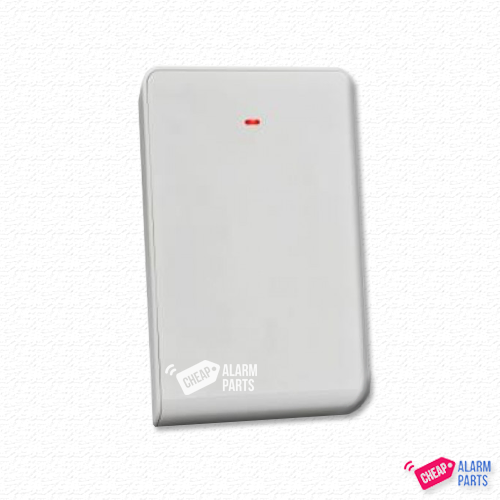

• B810 Receiver:
  • Dual internal antennas provide spatial and polar RF signal reception for high reliability
  • Cover and wall tamper protection
  • Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation
  • Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8)
  • External status LEDs
  • Available from Cheap Alarm Parts
  • Detection and reporting of radio frequency interference
  • 139.70 mm x 209.60 mm x 31.80 mm(5.50 in x 8.25 in x 1.25 in)
  • Powered from the alarm



The Blurb:

This kit upgrades the Solution 3000 panel and adds wireless capabilities. It is compatible with all of the Bosch wireless sensors. The kit comes with four 4 button remote controls, a genuine Bosch Radion B810 SD12 receiver and 2m of security cabling for connection. The receiver connects to the keypad BUS on the Solution 3000 and the panel needs to be programmed so it knows there is a receiver present. You will also need the mastercode to program in the new remotes.



What's in the box?

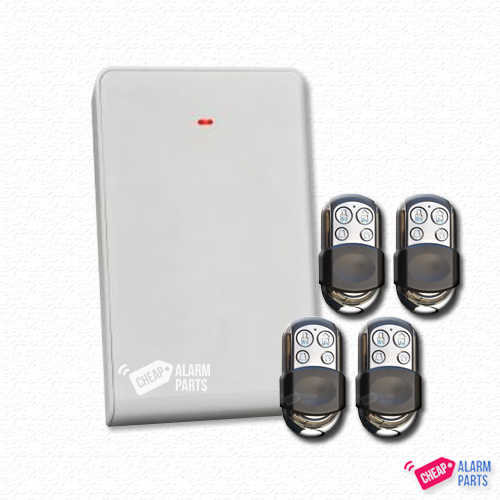

• 1Qty x Bosch B810 SD12 Bus receiver
• 4Qty x HCT-4UL 4 button stainless steel remote control keyfobs
• 1Qty x 2m Security 4 core cabling for connection



Compatibility:

• Bosch Solution 3000



How to wire:





How to program the B810 Receiver:

The Solution 3000 needs to be told it has a receiver connected.
You may need to reboot the system after you have programmed in the new receiver.

Programming in the B810 with an icon series keypad:



Programming in the B810 with a text or touch screen series keypad:



How to program new remotes:

Programing remotes with a icon series keypad:

Program the new module as follows, if you already have existing key-fobs, make sure you don't program these new fobs into existing user numbers, otherwise your old fobs will not work. You can use memory locations 9 -15 for keyfobs. If you are not sure, it's best to add the new remote's to User 11 or User 12.



Programming remotes with a text or touch screen series keypad:
