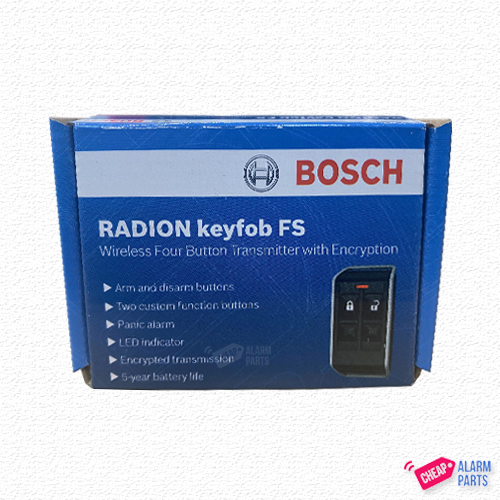

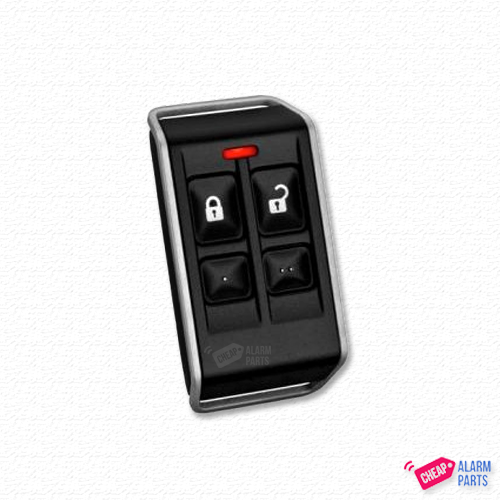

Bosch Radion Wireless 4 Button Keyfob Remote RFKF-FBS, Encrypted.



Quick Overview:

• Water and dust resistant
• Encrypted.
• Arm, disarm and panic, stay and aux functions
• Assigned by user for accurate reporting of open close signals
• LED indicator
• Programmable aux buttons (depending on panel type
• Available from Cheap Alarm Parts



The Blurb:

Radion keyfobs allow you to arm or disarm the security system or send a panic alarm. Programmed with a unique code, each model works exclusively with your compatible security system. Two option buttons are user-defined to perform additional functions (depending on your panel type).



Specifications:

Dimensions:	63.7 mm x 35.5 mm x 13.0 mm(2.51 in x 1.40 in x 0.51 in)
Power/Voltage:	One CR2032 Lithium battery, 3 VDC
Battery Life:	Up to 5 years
Temperature:	Functional range: -10ﾟC to +49ﾟ(+14ﾟF to +120ﾟF)UL only: 0ﾟC to +49ﾟC (+32ﾟF to+120ﾟF)EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF
Environment:	Complies with EN50130-5 Class II
Relative Humidity:	Up to 93% non-condensing
Frequency:	433.42 MHz
Use:	Intended for indoor use.
Receivers:	B810 (compatible with RFKF-FB-A, and RFKF-TB-A only)RFRC-OPT (compatible with RFKF-FB and RFKF-TB only)



Compatibility Receiver and Firmware Version:

• B810 Receiver V2.01 or higher.
• RFRC-STR Receiver V1.5 or higher.
• RFRC-OPT/RFRC-OPT-CHI Receiver V1.3 or higher.

• Solution 3000
• Solution 6000

NOT Compatible with:

• DSRF RF3212E Receiver

This older receiver is found on many older panels such as the 880, Solution 64, Solution 16i



How to program:

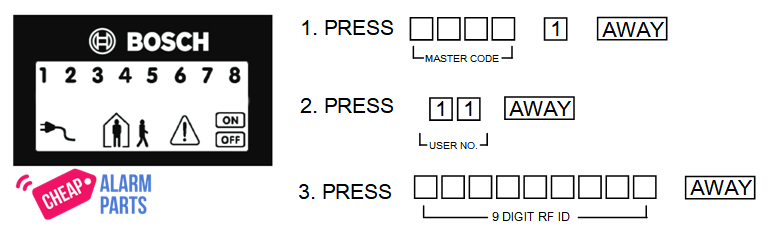

Solution 880, 862, 3000 icon series panels:

Program the new module as follows, if you already have existing key-fobs, make sure you don't program these new fobs into existing user numbers, otherwise your old fobs will not work. You can use memory locations 9 -15 for keyfobs. If you are not sure, it's best to add the new remote's to User 11 or User 12.

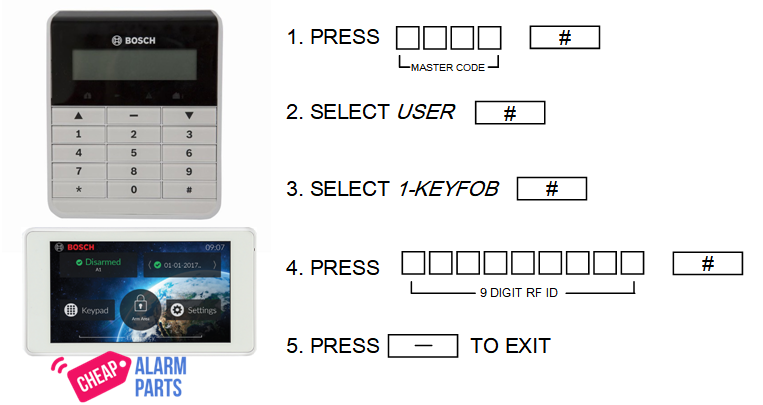

Solution 3000 Text & Touch screen series panels:

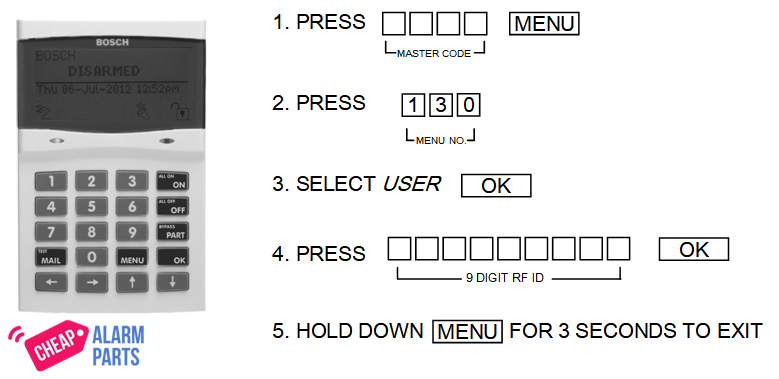

Solution 16i, 16Plus, 144, 6000 series panels:
