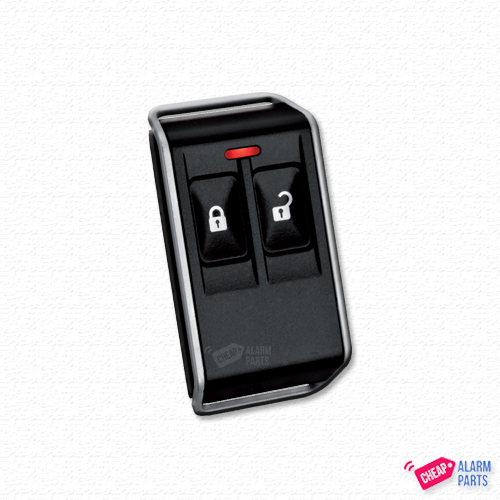

Radion Wireless Keyfob Remote Two Button RFKF-TBS, Encrypted.



Quick Overview:

• Water and dust resistant.
• Encrypted.
• Arm, disarm and panic functions.
• Assigned by user for accurate reporting of open close signals LED indicator.
• LED indicator.
• Programmable option buttons (only available on 4- button model).
• Available from Cheap Alarm Parts.



The Blurb:

RADION wireless from Bosch provides the range, scalability and exceptional battery life required to ensure reliable performance and superior quality. Advanced diagnostics and multiple device enrollment options make installation and maintenance simple and cost effective. With a complete line of peripherals, RADION provides the flexibility for virtually any application requirement.



Specifications:

Dimensions:	63.7 mm x 35.5 mm x 13.0 mm(2.51 in x 1.40 in x 0.51 in)
Power/voltage:	One CR2032 Lithium battery, 3 VDC
Battery life:	Up to 5 years
Temperature:	Functional range: -10ﾟC to +49ﾟ(+14ﾟF to +120ﾟF)UL only: 0ﾟC to +49ﾟC (+32ﾟF to+120ﾟF)EN 50130-5 Class II only: -10ﾟC to 40ﾟC (+14ﾟF to +104ﾟF)
Environment:	Complies with EN50130-5 Class II
Relative humidity:	Up to 93% non-condensing
Frequency:	433.42 MHz
Use:	Intended for indoor use
Receivers:	B810 (compatible with RFKF-FB-A, and RFKF-TB-A only)RFRC-OPT (compatible with RFKF-FB and RFKF-TB only)



Compatibility:

• B810 Receiver V2.01 or higher.
• RFRC-STR Receiver V1.5 or higher.
• RFRC-OPT/RFRC-OPT-CHI Receiver V1.3 or higher.



• Solution 3000
• Solution 6000



How to program:

Solution 880, 862, 3000 icon series panels:

Program the new module as follows, if you already have existing key-fobs, make sure you don't program these new fobs into existing user numbers, otherwise your old fobs will not work. You can use memory locations 9 -15 for keyfobs. If you are not sure, it's best to add the new remote's to User 11 or User 12.



Solution 3000 Text & Touch screen series panels:



Solution 16i, 16Plus, 144, 6000 series panels:
