Bosch RFRC-STR2 Radion Wireless Upgrade Kit - 3 x Premium Stainless Remotes



Quick Overview:



• Remotes:
  • Water and dust resistant
  • Arm, disarm and panic functions
  • Assigned by user for accurate reporting of open close signals
  • Available from Cheap Alarm Parts
  • LED indicator
  • Programmable aux buttons (depending on panel type)
  • Sliding cover to hide buttons
• RFRC-STR2 Receiver:
  • Dual internal antennas provide spatial and polar RF signal reception for high reliability
  • Cover and wall tamper protection
  • Multiple device enrollment options as well as RF diagnostics ensure efficient and effective installation
  • Supports supervision of wireless points (504), keyfobs (1000), and repeaters (8)
  • External status LEDs
  • Detection and reporting of radio frequency interference
  • Available from Cheap Alarm Parts
  • 139.70 mm x 209.60 mm x 31.80 mm(5.50 in x 8.25 in x 1.25 in)
  • Powered from the alarm



The Blurb:

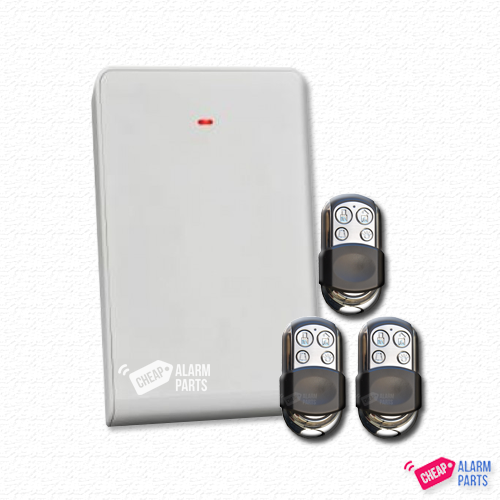

This kit from Cheap Alarm Parts upgrades compatible alarms panels and adds wireless capabilities. It is compatible with all of the Bosch wireless sensors. The kit comes with three 4 button remote controls, a genuine Bosch Radion RFRC-STR2 receiver (replaces the RF3212E receiver) and 2m of security cabling for connection. The receiver connects to the input terminals on most panels the panel needs to be programmed so it knows there is a receiver present. You will also need the mastercode to program in the new remotes.



Whats in the box?

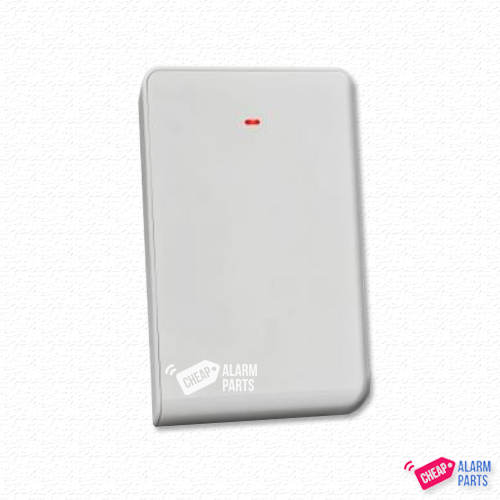

• 1 Qty x Bosch RFRC-STR2 serial receiver

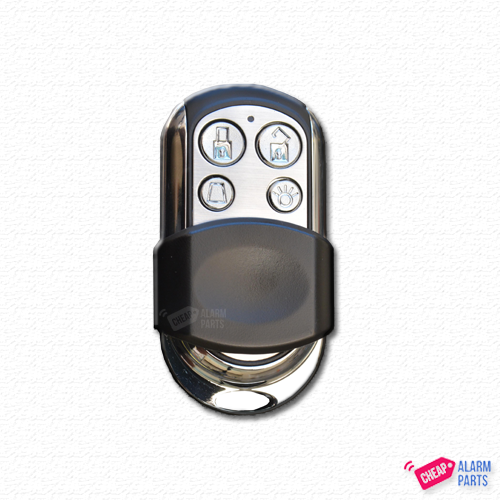

• 3 Qty x RF-HCT4UL-FOB four button stainless steel remotes with sliding cover
• 1 Qty x 2m Security 4 core cabling.





Compatible with:

• Solution Ultima 880
• Solution ICP-Ultima-880
• Solution 16Plus
• Solution 64
• Solution 16i
• Solution 144
• Solution 6000



Important:

• You must have the Master or Installer code to program in new remotes



Downloads:

 Serial Receiver Data Sheet (126kb)
 Serial Receiver Installation Guide (77kb)
 Keyfob Data Sheet (411kb)
 Keyfob Installation Guide (336kb)
