Standalone wireless receiver/transmitter kit



Quick Overview:

• Two Channel point to point transmitter / receiver set.
• Wireless Upgrade Kits & Point-to-Point
• 12V to 24V AC or DC
• The product is supplied with a PCB and housing.
• The two relays are activated by the 'alarm' and 'light' buttons on the RF3334E and RF-HCT4UL-FOB keyfobs.
• On the Radion keyfob the 'Dot' and 'Double Dot' buttons are used.
• Important Note: Will not work with encrypted remotes eg RFKF-FBS



The Blurb:

This device is designed to provide remote relay outputs from a Bosch Solution control panel to a location that can't be cabled to. An application could be triggering a gate open signal from a Bosch Solution system. The relay on the bosch panel can be connected to this device, which then povides a wireless link to the remote device (such as a garage door) and provides voltage free contacts at that location. It can be used stand alone on a roller door, gate controllers or other applications.

This receiver removes the need to wire from the control panel to an external relay (such as a garage door or gate request to open/close signal).

Both ends of the unit requires 12v. The alarm system can supply the transmitter side, while the receiver side comes with a plug pack or you can run it from and 12v supply.

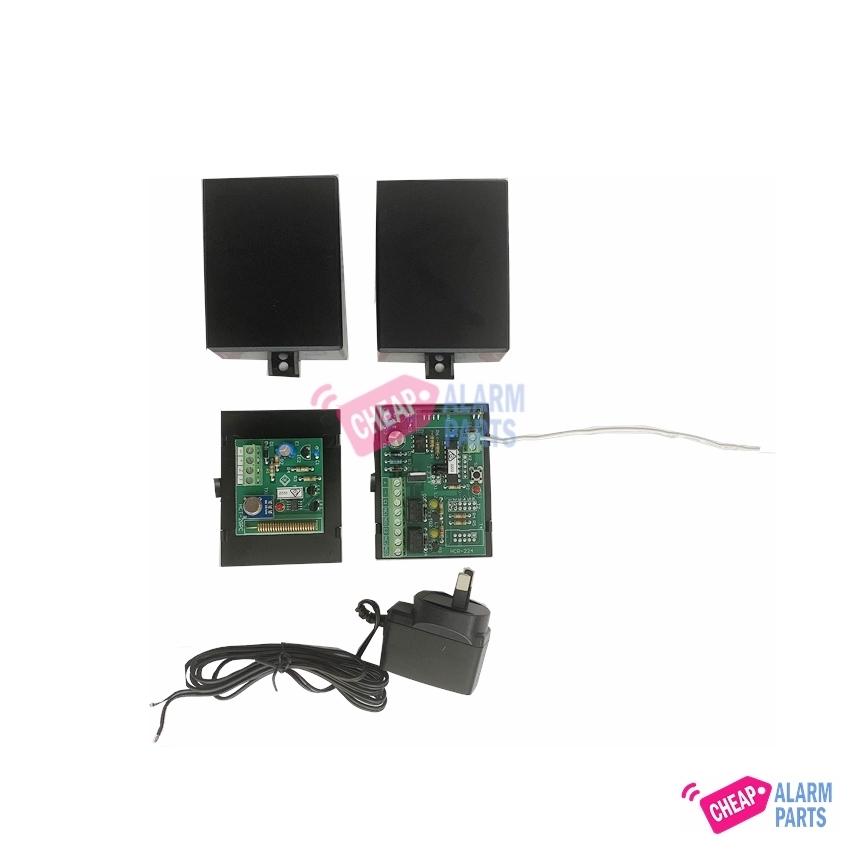

What's in the box?

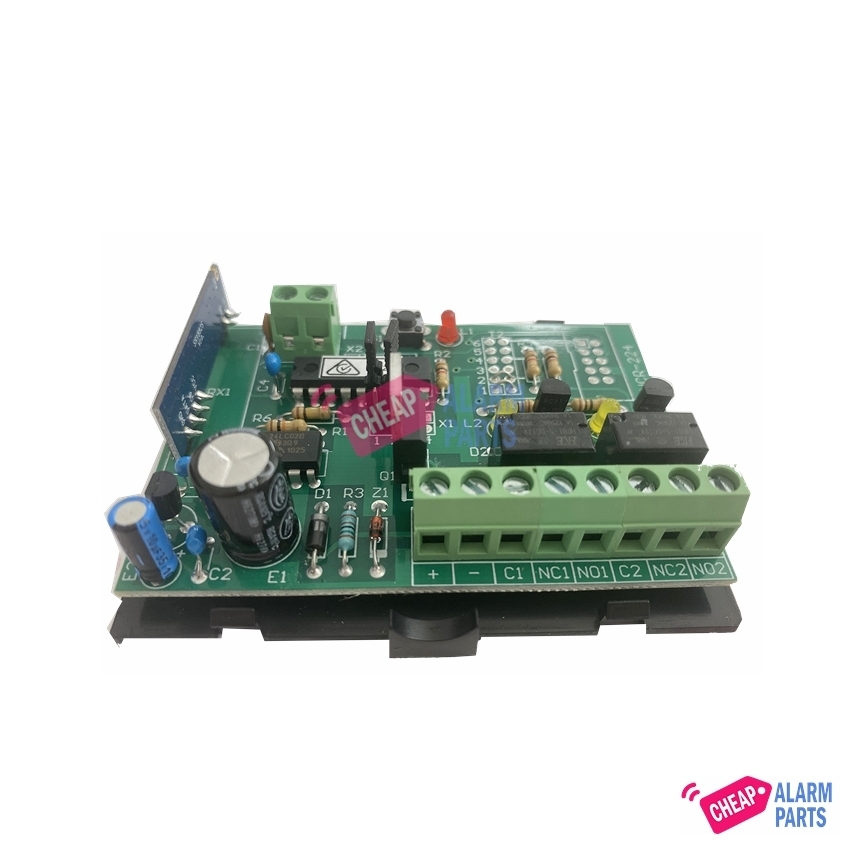

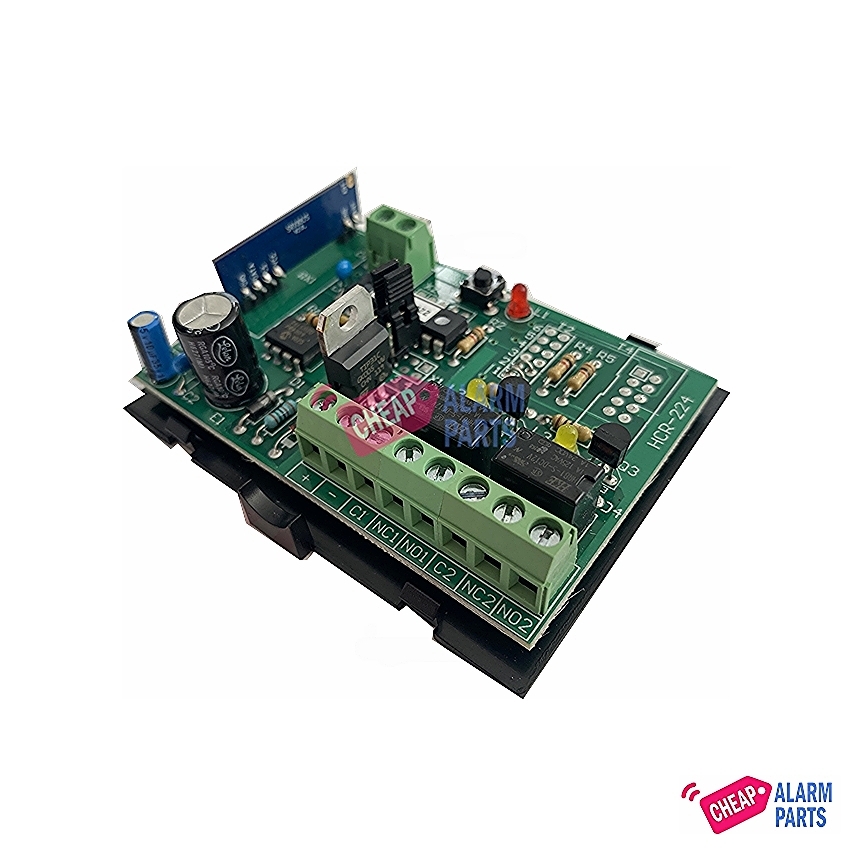

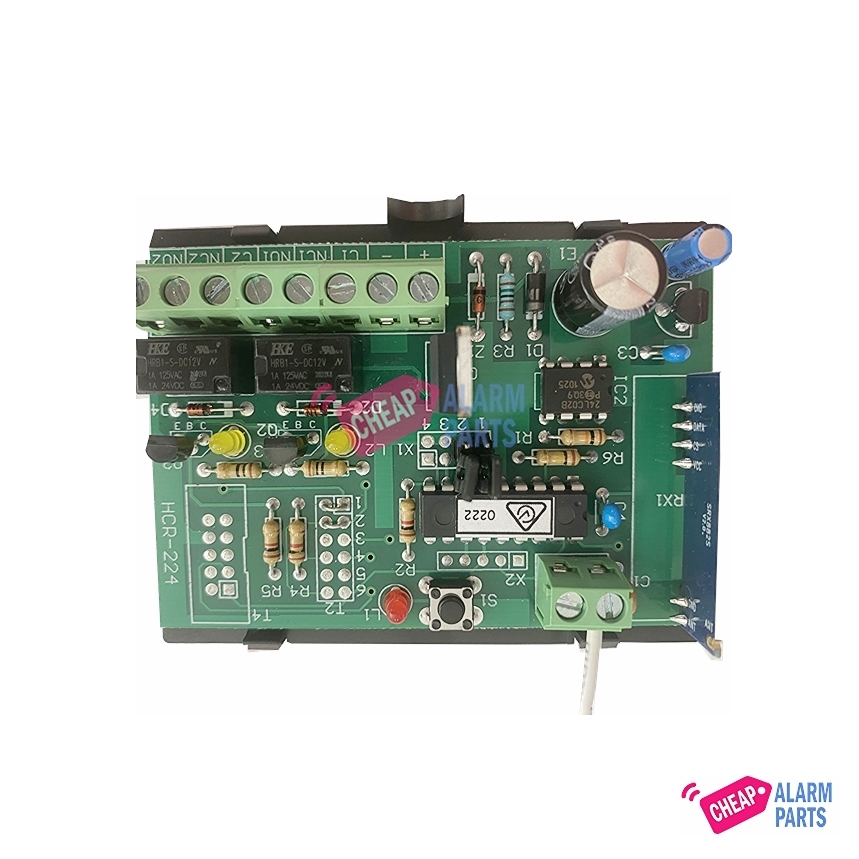

• 1x Bosch receiver board

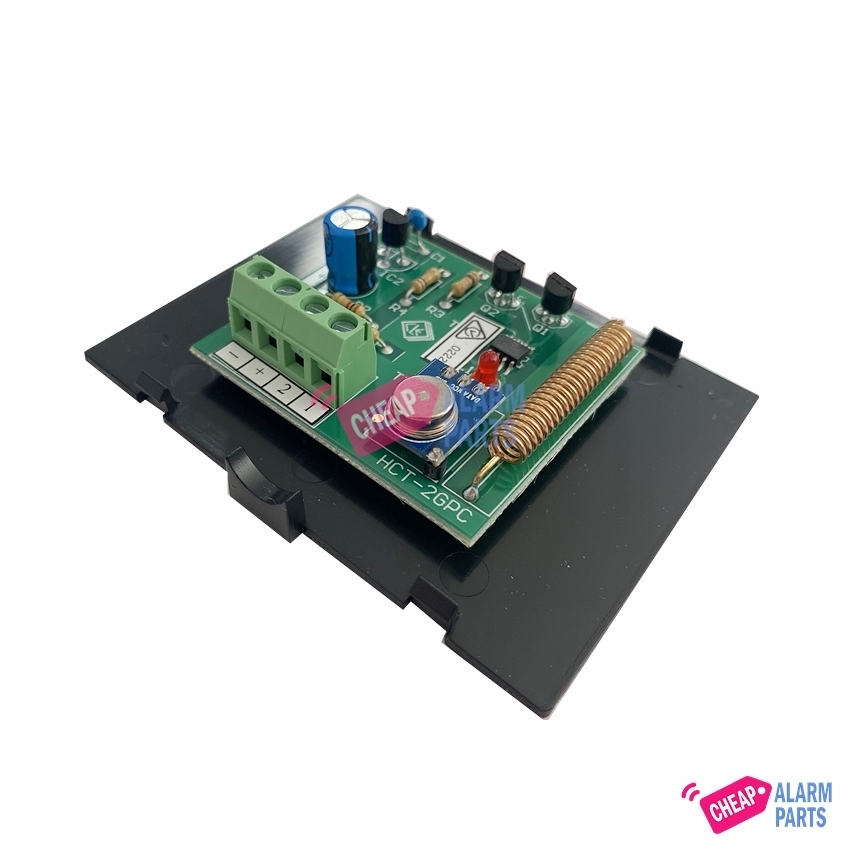

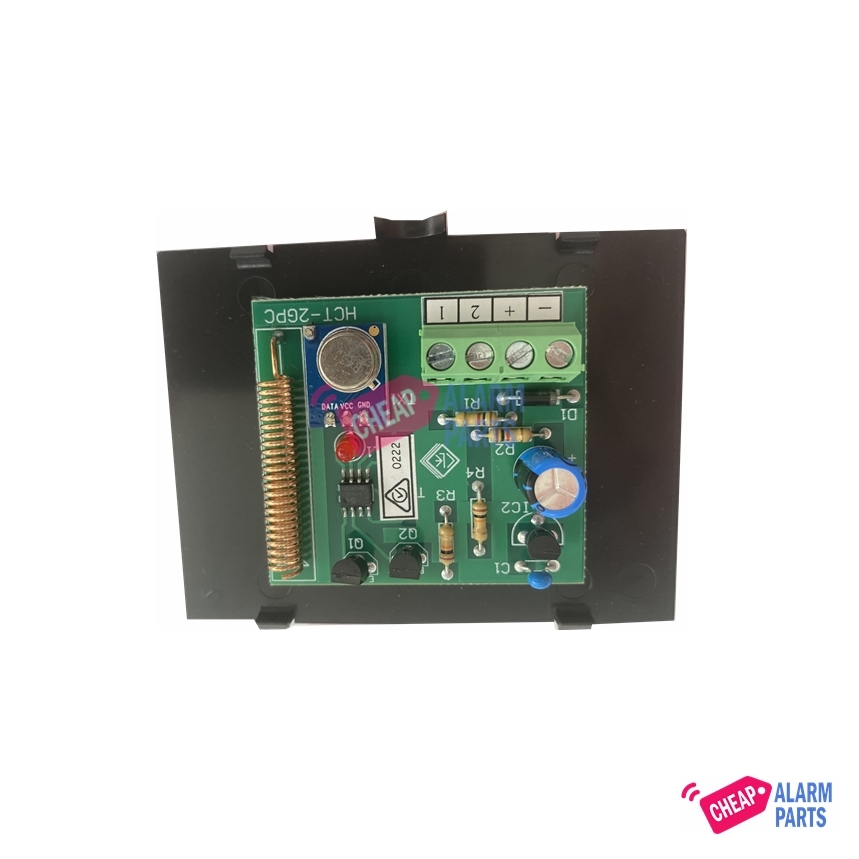

• 1x Bosch transmitter board

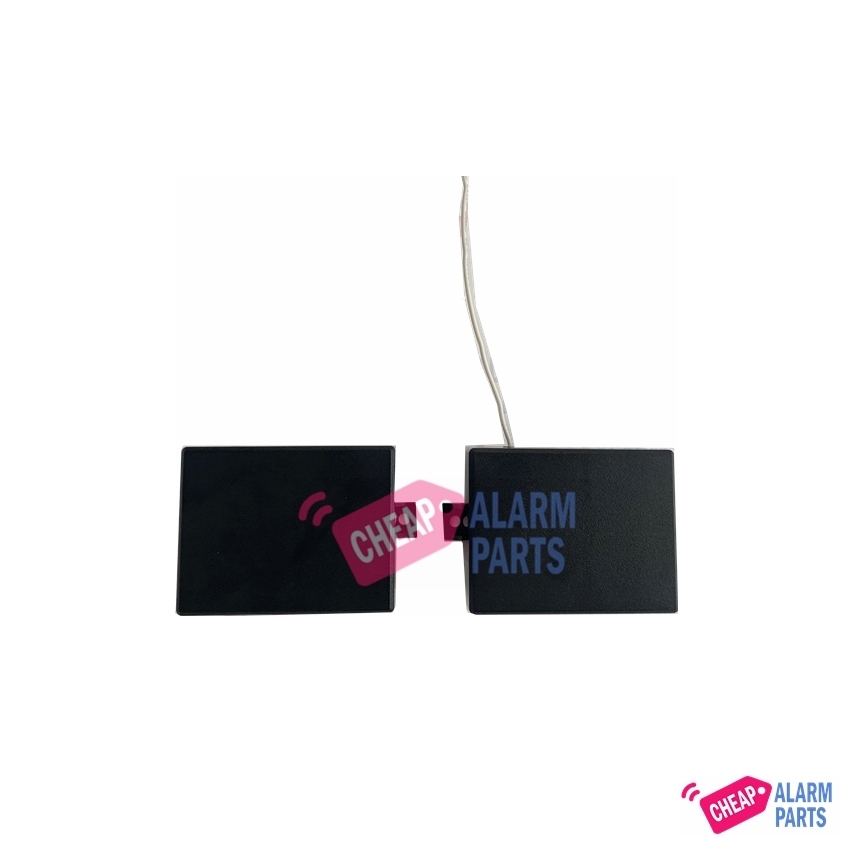

• Supplied with two cases
• Supplied with power supply for the receiving side



Compatibility:

• RF3334E
• HCT-4UL-FOB
• RFKF-FB

Note: This unit will not work with the RFKF-FBS encrypted Radion remotes which were introduced in August 2021.
